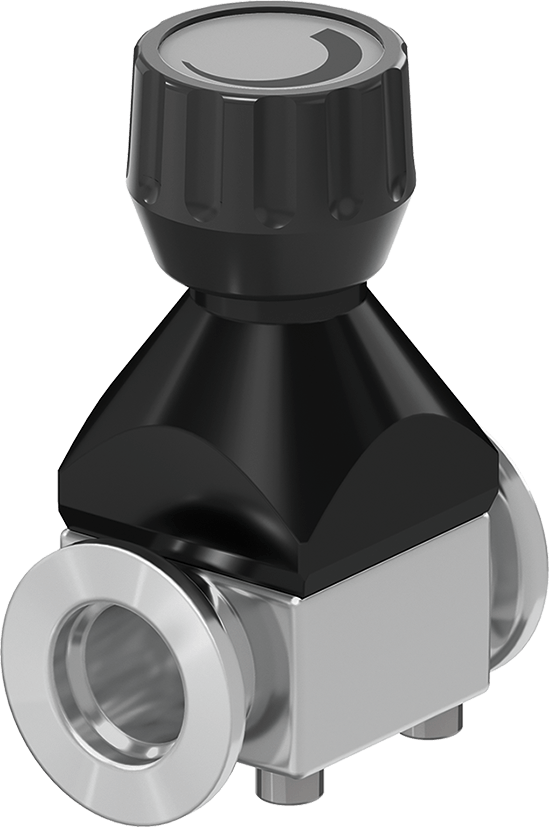

22.0 Diaphragm Valve

  • 22024-KA01
View dimensions

Series

22.0 Diaphragm Valve

Article number
22024-KA01
1 × 10-7 mbar to 5 bar (abs)

The Multipurpose Solution for Gases and Liquids

  • Technical data
  • Downloads
Size
DN 16 (⅝")
Flange
ISO-KF
Material
Aluminum
Actuator
Manual
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-7 mbar
Pressure Max.
5.0 bar (abs)
Conductance
2 ls⁻¹
Differential Pressure on Plate
≤ 5 bar
Differential Pressure at opening
≤ 5 bar
Max. temperature valve body
≤ 100 °C
Max. Temperature Actuator
≤ 50 °C
Weight
0.16 kg / 0.35 lbs
Add-Ons for Your Product
Valve
Gate
Actuator
Position indicator

22.0 Diaphragm Valve 22024-KA01 3D CAD File

ZIP 226 KB Download

22.0 Diaphragm Valve 22024-KA01 2D Dimension Drawing

PDF 160 KB Download

22.0 Diaphragm Valve 22024-KA01 Manual

PDF 366 KB Download

22.0 Diaphragm Valve 22024-KA01 Product Datasheet

PDF 16 KB Download
