Series

24.4 Angle Valve

  • 24.4 - 24446-QE14
  • 24.4 - Angle Valve

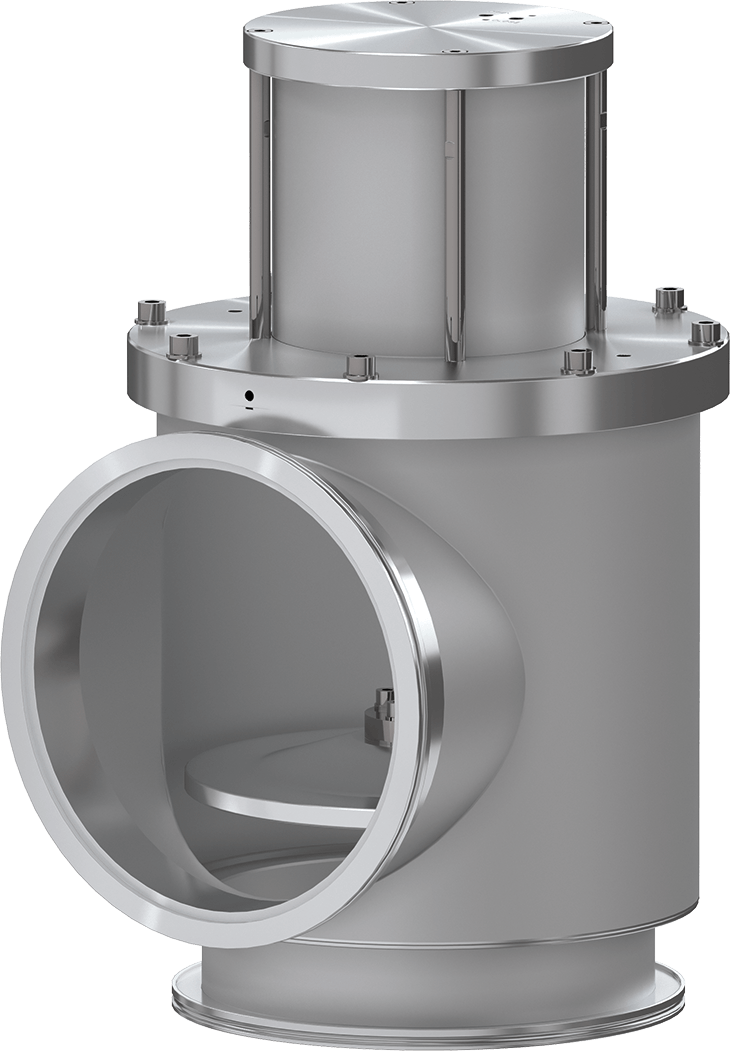

24.4 - 24446-QE14
24.4 - Angle Valve
View dimensions

Series

24.4 Angle Valve

Article number
24446-QE14
1 × 10-7 mbar to 5 bar (abs)

Uncompromised Reliability for Large Volume Flows

  • Technical data
  • Downloads
Size
DN 200 (8")
Flange
ISO-K
Material
Stainless steel
Actuator
Pneumatic: double acting
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-7 mbar
Pressure Max.
4.0 bar (abs)
Conductance
2000 ls⁻¹
Differential Pressure on Plate
≤ 1.2 bar
Differential Pressure at opening
≤ 1.6 bar
Cylinder volume
3.1 l
Max. compressed air pressure
7 bar / 102 psi
Min. compressed air pressure
5 bar / 73 psi
Close open time
3 s
Weight
21 kg / 46.3 lbs
Max. Temperature Actuator
≤ 120 °C
Max. temperature valve body
≤ 150 °C
Add-Ons for Your Product
Valve
Actuator
Position indicator
Gate

24.4 Angle Valve 24446-QE14 3D CAD File

ZIP 144.19 KB

24.4 Angle Valve 24446-QE14 Product Datasheet

PDF 24.51 KB

24.4 Angle Valve 24446-QE14 Manual

PDF 207.05 KB

24.4 Angle Valve 24446-QE14 2D Dimension Drawing

PDF 178.36 KB
