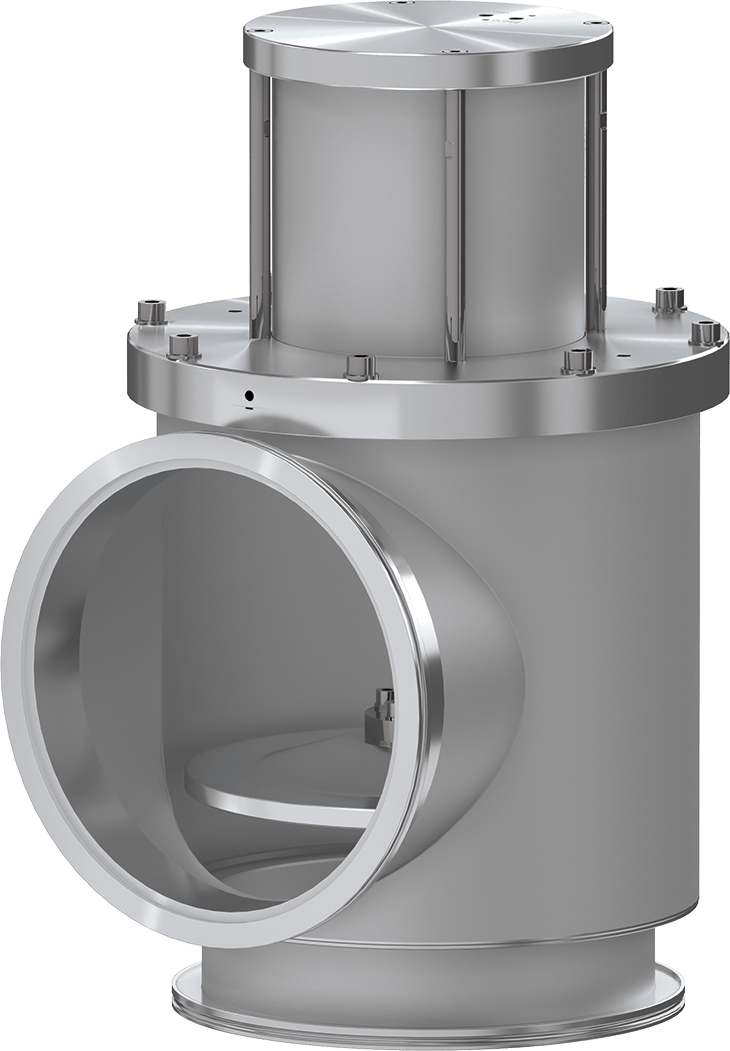

24.4 Angle Valve

  • 24.4 - 24444-QA14
  • 24.4 - Angle Valve
24.4 - 24444-QA14
24.4 - Angle Valve
View dimensions

Series

24.4 Angle Valve

Article number
24444-QA14
1 × 10-7 mbar to 5 bar (abs)

Uncompromised Reliability for Large Volume Flows

  • Technical data
  • Downloads
Size
DN 160 (6")
Flange
ISO-K
Material
Stainless steel
Actuator
Pneumatic: double acting
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-7 mbar
Pressure Max.
2.0 bar (abs)
Conductance
1000 ls⁻¹
Differential Pressure on Plate
≤ 2 bar
Differential Pressure at opening
≤ 1 bar
Max. compressed air pressure
7 bar / 102 psi
Min. compressed air pressure
4.5 bar / 65 psi
Close open time
≤ 1.5 sec
Weight
12 kg / 26.46 lbs
Max. Temperature Actuator
≤ 120 °C
Max. temperature valve body
≤ 150 °C
