Series

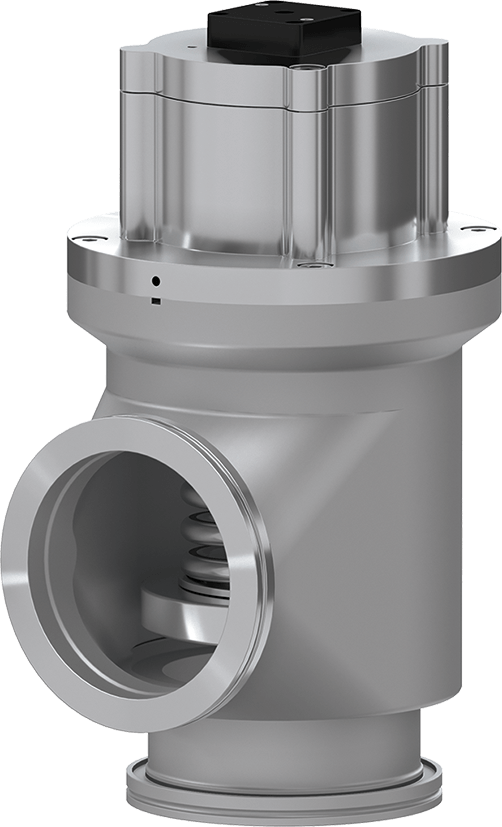

24.4 Angle Valve

Article number
24438-QA41
1 × 10-7 mbar to 5 bar (abs)

Uncompromised Reliability for Large Volume Flows

  • Technical data
  • Downloads
Size
DN 80 (3")
Flange
ISO-K
Material
Aluminum
Actuator
Pneumatic, single acting with closing spring (NC)
Position Indication Signal
Yes
Solenoid
Yes
Pressure Min.
1 × 10-7 mbar
Pressure Max.
4.0 bar (abs)
Conductance
200 ls⁻¹
Differential Pressure on Plate
≤ 4 bar
Differential Pressure at opening
≤ 1 bar
Max. temperature solenoid
≤ 80 °C
Cylinder volume
0.112 l
Max. compressed air pressure
8 bar / 116 psi
Min. compressed air pressure
4 bar / 58 psi
Max. temperature position indicator
≤ 80 °C
Close open time
0.7 s
Weight
3.3 kg / 7.28 lbs
Max. Temperature Actuator
≤ 120 °C
Max. temperature valve body
≤ 150 °C
