24.4 Angle Valve

  • 24438-QA31
View dimensions

Series

24.4 Angle Valve

Article number
24438-QA31
1 × 10-7 mbar to 5 bar (abs)

Uncompromised Reliability for Large Volume Flows

  • Technical data
  • Downloads
Size
DN 80 (3")
Flange
ISO-K
Material
Aluminum
Actuator
Pneumatic, single acting with closing spring (NC)
Position Indication Signal
No
Solenoid
Yes
Pressure Min.
1 × 10-7 mbar
Pressure Max.
4.0 bar (abs)
Conductance
200 ls⁻¹
Differential Pressure on Plate
≤ 4 bar
Differential Pressure at opening
≤ 1 bar
Min. compressed air pressure
4 bar / 58 psi
Max. compressed air pressure
8 bar / 116 psi
Cylinder volume
0.112 l
Close open time
0.7 s
Max. temperature valve body
≤ 150 °C
Max. Temperature Actuator
≤ 120 °C
Max. temperature solenoid
≤ 80 °C
Weight
3.3 kg / 7.28 lbs
Add-Ons for Your Product
Valve
Gate
Actuator
Position indicator

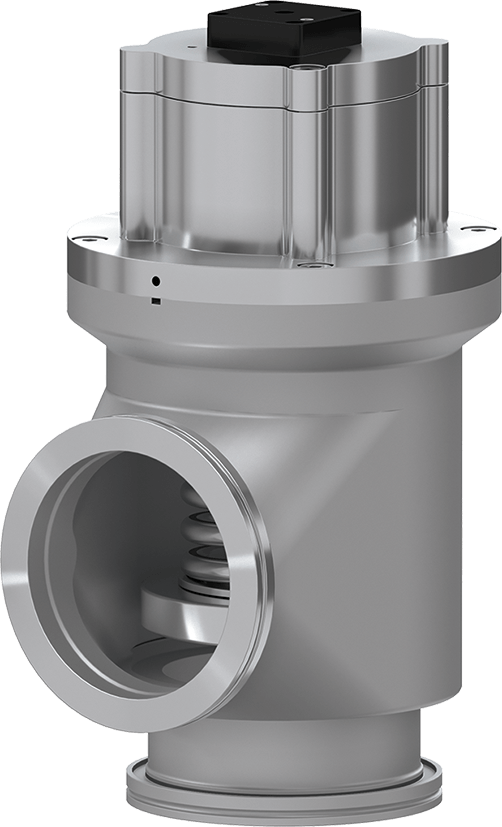

24.4 Angle Valve 24438-QA31 3D CAD File

ZIP 227 KB Download

24.4 Angle Valve 24438-QA31 2D Dimension Drawing

PDF 223 KB Download

24.4 Angle Valve 24438-QA31 Product Datasheet

PDF 27 KB Download

24.4 Angle Valve 24438-QA31 Manual

PDF 740 KB Download
