24.4 Angle Valve

  • 24.4 - 24432-KE42
  • 24.4 - Angle Valve

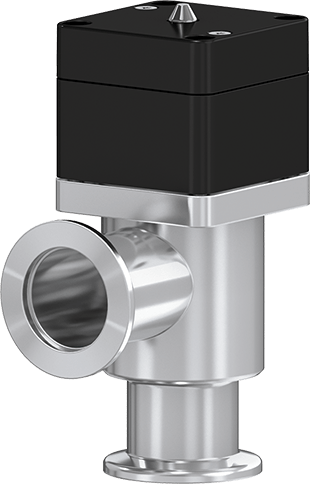

24.4 - 24432-KE42
24.4 - Angle Valve
View dimensions

Series

24.4 Angle Valve

Article number
24432-KE42
1 × 10-7 mbar to 5 bar (abs)

Uncompromised Reliability for Large Volume Flows

  • Technical data
  • Downloads
Size
DN 40 (1 ½")
Flange
ISO-KF
Material
Stainless steel
Actuator
Pneumatic: single acting with opening spring (NO)
Position Indication Signal
Yes
Solenoid
Yes
Pressure Min.
1 × 10-7 mbar
Pressure Max.
5.0 bar (abs)
Conductance
45 ls⁻¹
Differential Pressure on Plate
≤ 5 bar
Differential Pressure at opening
≤ 1 bar
Max. temperature solenoid
≤ 80 °C
Cylinder volume
0.04 l
Max. compressed air pressure
8 bar / 116 psi
Min. compressed air pressure
4 bar / 58 psi
Max. temperature position indicator
≤ 80 °C
Close open time
0.6 s
Weight
1.2 kg / 2.65 lbs
Max. Temperature Actuator
≤ 120 °C
Max. temperature valve body
≤ 150 °C
Add-Ons for Your Product
Valve
Actuator
Position indicator
Gate

24.4 Angle Valve 24432-KE42 2D Dimension Drawing

PDF 167.43 KB

24.4 Angle Valve 24432-KE42 Manual

PDF 1.15 MB

24.4 Angle Valve 24432-KE42 Product Datasheet

PDF 135.41 KB

244_Angle_Valve_24432_KE42_3D_CAD_File-244_FV_Angle_Valve_24432_KE42_3D_CAD_File-701834.zip

ZIP 227.46 KB
