21.0 Butterfly Valve

  • 21.0 - 21040-PE44
  • 21.0 Butterfly Valve

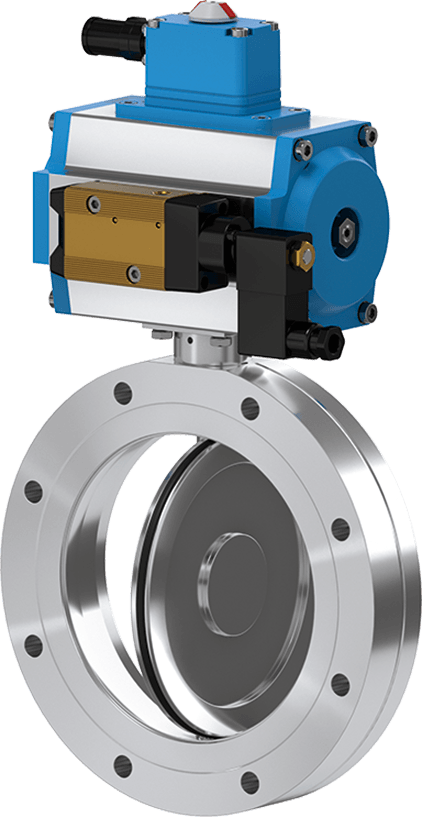

21.0 - 21040-PE44
21.0 Butterfly Valve
View dimensions

Series

21.0 Butterfly Valve

Article number
21040-PE44
1 × 10-8 mbar to 1.3 bar (abs)

Reliable vacuum isolation in a compact design

  • Technical data
  • Downloads
Size
DN 100 (4")
Flange
ISO-F
Material
Stainless steel
Actuator
Pneumatic: double acting
Position Indication Signal
Yes
Solenoid
Yes
Pressure Min.
1 × 10-8 mbar
Pressure Max.
4.0 bar (abs)
Conductance
1000 ls⁻¹
Differential Pressure on Plate
≤ 4 bar
Differential Pressure at opening
≤ 4 bar
Max. temperature solenoid
≤ 50 °C
Max. compressed air pressure
6 bar / 87 psi
Min. compressed air pressure
4 bar / 58 psi
Max. temperature position indicator
≤ 80 °C
Close open time
0.55 s / 0.32 s
Weight
7.4 kg / 16.31 lbs
Max. Temperature Actuator
≤ 80 °C
Max. temperature valve body
≤ 150 °C
