Series

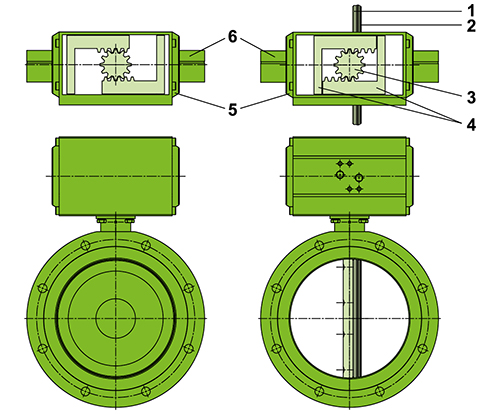

21.0 Butterfly Valve

  • 21.0 - 21036-PE06
  • 21.0 Butterfly Valve

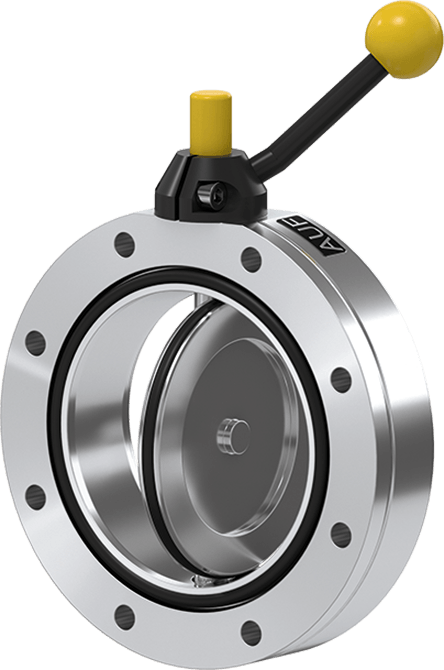

21.0 - 21036-PE06
21.0 Butterfly Valve
View dimensions

Series

21.0 Butterfly Valve

Article number
21036-PE06
1 × 10-8 mbar to 1.3 bar (abs)

Reliable vacuum isolation in a compact design

  • Technical data
  • Downloads
Size
DN 63 (2 ½")
Flange
ISO-F (double number of holes)
Material
Stainless steel
Actuator
Manual
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-8 mbar
Pressure Max.
4.0 bar (abs)
Conductance
350 ls⁻¹
Differential Pressure on Plate
≤ 4 bar
Differential Pressure at opening
≤ 1.3 bar
Max. compressed air pressure
8 bar / 116 psi
Min. compressed air pressure
4 bar / 58 psi
Weight
3.1 kg / 6.83 lbs
Max. temperature valve body
≤ 150 °C
Add-Ons for Your Product
Valve

21.0 Butterfly Valve 21036-PE06 Product Datasheet

PDF 68.30 KB

21.0 Butterfly Valve 21036-PE06 Manual

PDF 1.25 MB

21.0 Butterfly Valve 21036-PE06 2D Dimension Drawing

PDF 171.50 KB

21.0 Butterfly Valve 21036-PE06 3D CAD File

ZIP 113.67 KB
