Name: 09.2 - 09240-PA06
Brand: VAT
SKU: 09240-PA06

Size

DN 100 (4")

Flange

ISO-F

Material

Aluminum

Actuator

Manual

Position Indication Signal

Solenoid

Pressure Min.

1 × 10^-⁸ mbar

Pressure Max.

1.2 bar (abs)

Conductance

1700 ls⁻¹

Differential Pressure on Plate

≤ 1.2 bar

Differential pressure at actuation: In opening direction

≤ 1 bar

Weight

7.5 kg / 16.53 lbs

Max. Temperature Actuator

≤ 100 °C

Max. temperature valve body

≤ 150 °C

Please specify your spare part need at the end of your selection process, on the next page.

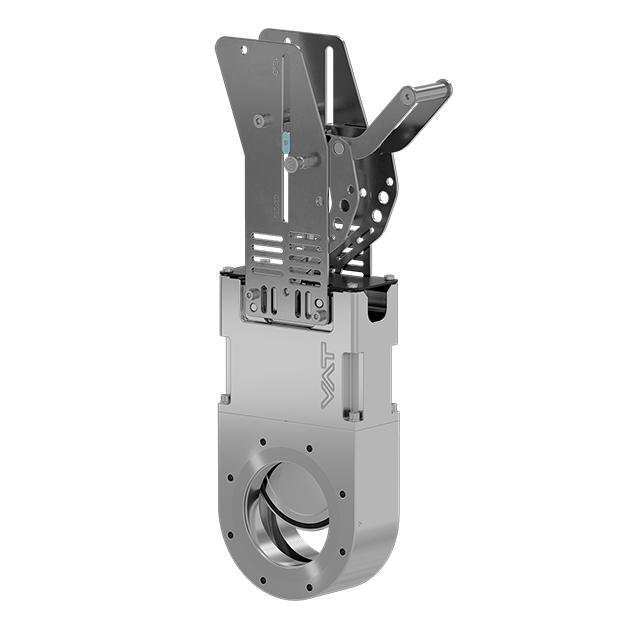

09.2 HV Gate Valve with Wedge Design
