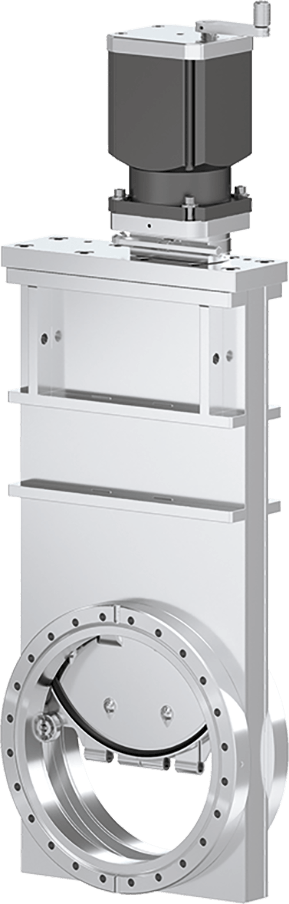

10.8 UHV Gate Valve

  • 10.8 - 10838-PE01
  • 10.8 - UHV Gate Valve
10.8 - 10838-PE01
10.8 - UHV Gate Valve
View dimensions

Series

10.8 UHV Gate Valve

Article number
10838-PE01
1 × 10-10 mbar to 1.2 bar (abs)

The Standard for UHV Isolation

  • Technical data
  • Downloads
Size
DN 80 (3")
Flange
ISO-F
Material
Stainless steel
Actuator
Manual
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-10 mbar
Pressure Max.
1.6 bar (abs)
Conductance
765 ls⁻¹
Differential Pressure on Plate
≤ 1.6 bar
Differential Pressure at opening
≤ 0.03 bar
Weight
9 kg / 19.84 lbs
Max. Temperature Actuator
≤ 250 °C
Max. temperature valve body
≤ 250 °C
Add-Ons for Your Product
Temperature Management
Gate
Valve
Position indicator
Actuator

10.8 UHV Gate Valve 10838-PE01 Manual

PDF 595.57 KB

10.8 UHV Gate Valve 10838-PE01 2D Dimension Drawing

PDF 111.78 KB

10.8 UHV Gate Valve 10838-PE01 Product Datasheet

PDF 85.16 KB
