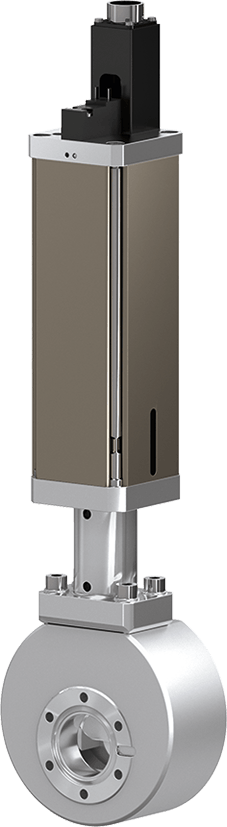

77.3 UHV Fast Closing Shutter

  • 77.3 - 77332-CE44
  • 77.3 UHV Fast Closing Shutter
77.3 - 77332-CE44
77.3 UHV Fast Closing Shutter
View dimensions

Series

77.3 UHV Fast Closing Shutter

Article number
77332-CE44
UHV to 1.2 bar (abs)

Protection of accelerators and storage rings from air inrush (slot shutter valve design)

  • Technical data
  • Downloads
Size
DN 40 (1 ½")
Flange
CF-F (metric threads)
Material
Stainless steel
Actuator
Pneumatic double acting, electro-magnetically released
Position indication signal
Yes
Solenoid
Yes
Pressure min.
XHV
Pressure max.
5.0 bar (abs)
Conductance
110 ls⁻¹
Differential pressure on plate
≤ 1.2 bar
Differential pressure at opening
≤ 0.3 bar
Cylinder volume
0.032 l
Max. compressed air pressure
6 bar / 87 psi
Min. compressed air pressure
4 bar / 58 psi
Max. temperature position indicator
≤ 80 °C
Close open time
0.01 s / 9 s
Weight
10 kg / 22.05 lbs
Max. temperature actuator
≤ 50 °C
Max. temperature valve body
≤ 300°C
