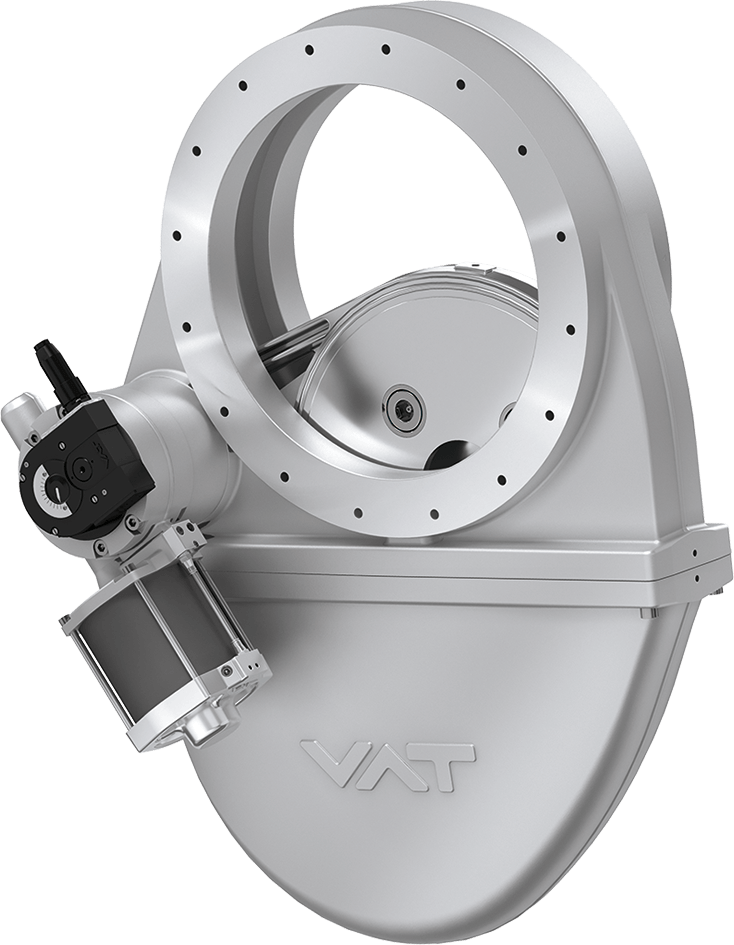

16.8 Large HV Pendulum Isolation Valve

  • 16852-AA44
View dimensions

Series

16.8 Large HV Pendulum Isolation Valve

Article number
16852-AA44
1 × 10-8 mbar to 1.2 bar (abs)

Compact Design for Large Vacuum Flows and Harsh Conditions

  • Technical data
  • Downloads
Size
DN 400 (16")
Flange
ASA-LP
Material
Aluminum
Actuator
Pneumatic: double acting
Position Indication Signal
Yes
Solenoid
Yes
Pressure Min.
1 × 10-7 mbar
Pressure Max.
1.2 bar (abs)
Conductance
90000 ls⁻¹
Conductance DO NOT USE
200
Differential Pressure on Plate
≤ 1.2 bar
Differential Pressure at opening
≤ 0.03 bar
Min. compressed air pressure
5 bar / 73 psi
Max. compressed air pressure
7 bar / 102 psi
Cylinder volume
4.8 l
Close open time
14 s
Max. temperature valve body
≤ 120 °C
Max. Temperature Actuator
≤ 80 °C
Max. temperature position indicator
≤ 80 °C
Max. temperature solenoid
≤ 50 °C
Weight
115 kg / 253.53 lbs

16.8 Large HV Pendulum Isolation Valve 16852-AA44 3D CAD File

ZIP 3 MB Download

16.8 Large HV Pendulum Isolation Valve 16852-AA44 2D Dimension Drawing

PDF 526 KB Download

16.8 Large HV Pendulum Isolation Valve 16852-AA44 Manual

PDF 685 KB Download

16.8 Large HV Pendulum Isolation Valve 16852-AA44 Product Datasheet

PDF 54 KB Download
