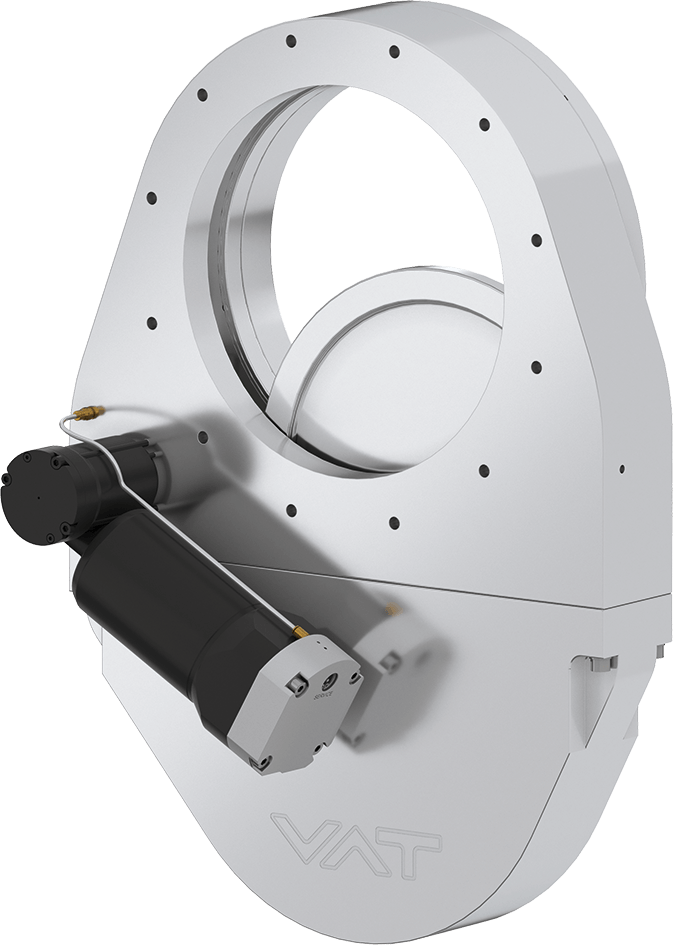

16.2 HV Pendulum Isolation Valve

View dimensions

Series

16.2 HV Pendulum Isolation Valve

Article number

16250-PA41

1 × 10^-8 mbar to 1.2 bar (abs)

The Standard for Isolation Requirements in Evaporator and Sputter Applications

Technical data
Downloads

Size

DN 320 (12")

Flange

ISO-F

Material

Aluminum

Actuator

Pneumatic, single acting with closing spring (NC)

Position Indication Signal

Yes

Solenoid

Yes

Pressure Min.

1 × 10^-⁸ mbar

Pressure Max.

1.2 bar (abs)

Conductance

32600 ls⁻¹

Differential Pressure on Plate

≤ 1.2 bar

Differential Pressure at opening

≤ 0.005 bar

Min. compressed air pressure

5 bar / 73 psi

Max. compressed air pressure

7 bar / 102 psi

Cylinder volume

0.55 l

Close open time

5 s

Max. temperature valve body

≤ 120 °C

Max. Temperature Actuator

≤ 80 °C

Max. temperature position indicator

≤ 80 °C

Max. temperature solenoid

≤ 50 °C

Weight

55 kg / 121.25 lbs
