Series

24.4 Angle Valve

  • 24.4 - 24434-KA01
  • 24.4 - Angle Valve

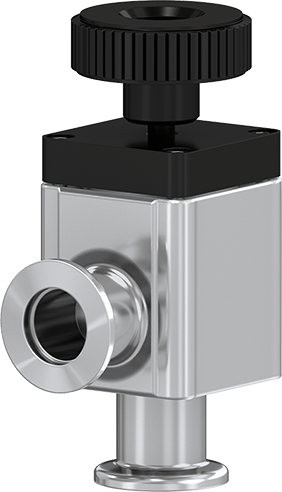

24.4 - 24434-KA01
24.4 - Angle Valve
View dimensions

Series

24.4 Angle Valve

Article number
24434-KA01
1 × 10-7 mbar to 5 bar (abs)

Uncompromised Reliability for Large Volume Flows

  • Technical data
  • Downloads
Size
DN 50 (2")
Flange
ISO-KF
Material
Aluminum
Actuator
Manual
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-7 mbar
Pressure Max.
5.0 bar (abs)
Conductance
80 ls⁻¹
Differential Pressure on Plate
≤ 5 bar
Differential Pressure at opening
≤ 1 bar
Weight
1.4 kg / 3.09 lbs
Max. Temperature Actuator
≤ 120 °C
Max. temperature valve body
≤ 150 °C
Add-Ons for Your Product
Valve
Actuator
Gate
Position indicator

24.4 Angle Valve 24434-KA01 2D Dimension Drawing

PDF 211.96 KB

24.4 Angle Valve 24434-KA01 Manual

PDF 306.53 KB

24.4 Angle Valve 24434-KA01 Product Datasheet

PDF 16.66 KB

244_Angle_Valve_24434_KA01_3D_CAD_File-244_FV_Angle_Valve_24434_KA01_3D_CAD_File-260714.zip

ZIP 409.80 KB
